Geometric Acoustic Fabric Panel
Add acoustic comfort to your space without compromising on design. Geometric acoustic fabric panels are specially designed sound-regulating solutions that offer visual aesthetics in addition to acoustic performance. They create modular compositions with geometric forms such as triangle, hexagon, square, circle; and help effectively control echo and noise in offices, hotel lobbies, conference halls, open-plan offices, cafés, and studios. They can be produced with glass wool / acoustic foam / basotect as the core filling material; and the front surface is finished with acoustic fabric covering. With sound absorption performance that can be targeted in the NRC 0.70 – 1.00 range and 20–50 mm thickness options, they provide acoustic comfort with a modern look on indoor wall and ceiling surfaces.
Adding Acoustic Comfort to Your Space Without Compromising Design

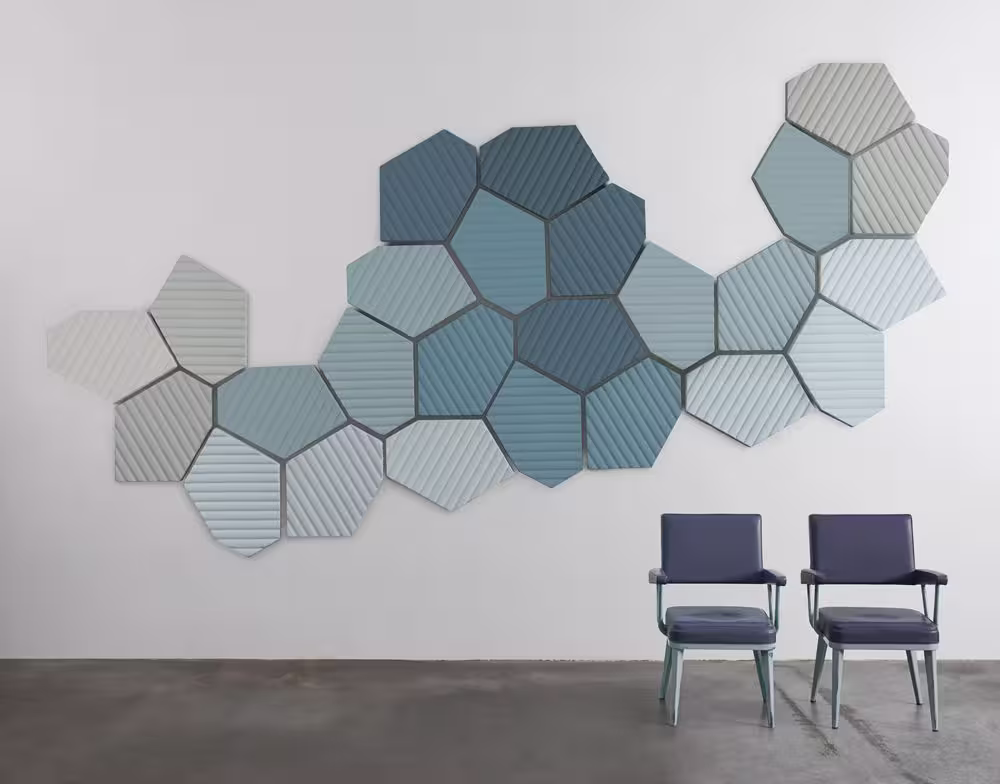

Geometric acoustic fabric panels combine echo control and decorative design on the same surface. Modular panels designed in forms such as triangle, hexagon, square, and circle create a modern appearance in interiors while helping reduce the feeling of echo/reverberation in the environment.
They provide sound comfort in offices, hotel lobbies, conference halls, open-plan offices, cafés, and studios, while also standing out as a design element that strengthens the identity of the space.
Why Should Geometric Panels Be Preferred?
- Creates a strong aesthetic impact
- Unique designs can be created thanks to their modular structure
- Easy to install, portable, and repositionable
- Offers both acoustic and decorative solution
- Can be customized to match brand, corporate, or space identity
Technical Specifications
- Product Name: Geometric Acoustic Fabric Panel
- Design: Triangle, hexagon, square, circle and custom shapes
- Material: glass wool / acoustic foam / basotect + acoustic fabric covering
- Sound Absorption Coefficient (NRC): 0.70 – 1.00 range
- Thickness Options: 20 mm, 30 mm, 40 mm, 50 mm
- Color Options: Limited to the preferred acoustic fabric swatch
- Installation: Depending on the model, it can be applied with adhesive bonding (liquid solid adhesive), H-profile, or Z-Clips method
- Application Area: Indoor wall and ceiling surfaces
Combine Echo Control with Modern Geometry
Geometric acoustic fabric panels are a practical solution for both decoration and acoustic needs with their modular forms that strengthen the architectural language of the space. With the right thickness, the right square footage, and the right layout plan, speech clarity increases and the environment feels calmer.
Geometric acoustic fabric panel solutions provide echo and noise control in spaces such as offices, hotel lobbies, conference halls, open offices, cafés, and studios, while also offering a decorative design language. Thanks to shapes such as triangle, hexagon, square, and circle, you can achieve a unique look with modular compositions instead of a uniform cladding.
Panels produced with glass wool / acoustic foam / basotect as the core filling material are completed with acoustic fabric covering. With the structure selected according to the project, sound absorption performance in the NRC 0.70 – 1.00 range can be targeted. Thickness options are 20 / 30 / 40 / 50 mm, and color selection is determined according to the acoustic fabric swatch.
Installation can be applied to wall and ceiling surfaces using liquid solid adhesive, H-profile, or Z-Clips method depending on the model. With project-based customization in terms of shape, color, and dimensions, you can create a design suitable for your brand or space identity.
Unique Compositions with Modular Geometric Design
The biggest advantage of geometric panels is the ability to create unique patterns by combining different forms instead of monotonous surfaces. With triangle, hexagon, square, or circle combinations, a corporate flow can be achieved on the wall/ceiling; if desired, the design can be fully customized with project-specific forms and dimensions.
Effective Acoustic Performance with NRC 0.70 – 1.00
As reverberation increases in areas where speech is intense, distraction and fatigue also rise. Geometric acoustic fabric panels help dampen sound energy by absorbing it. With the fill material and thickness selected according to the project, performance in the NRC 0.70 – 1.00 range can be targeted; thus speech intelligibility is supported.
Acoustic Fabric Color Swatch
You can review the fabric swatch below to facilitate color selection for your project.
Installation and Assembly Process
At Han Acoustic, we manage the entire project from start to finish — accurate analysis, thoughtful design, and flawless craftsmanship.
Needs Analysis & Area Assessment
We identify target surfaces based on the room's echo and noise problem, planning the required square footage and panel layout.
Design, Shape and Thickness Selection
We determine the form (triangle/hexagon/square/circle) and thickness in the 20–50 mm range based on the project, and confirm the fill material (glass wool / foam / basotect).
Color Swatch & Production
Color is selected from the acoustic fabric swatch; production is planned according to the chosen form and dimensions (custom sizes and shapes are available for each project).
Installation
Installation on walls or ceilings is carried out using liquid solid adhesive, H-profile, or Z-Clips method depending on the model.
Quality Check & Handover
After installation, alignment and surface checks are performed; the space is handed over with final quality controls targeting the desired acoustic comfort.
What Should Be Considered When Choosing a Geometric Acoustic Fabric Panel?
The most critical issue with geometric panels is the right square footage, right thickness, and design setup. It is not necessary to cover every surface with panels; planning the right distribution and composition by targeting surfaces where sound reflects most intensely gives more effective results.
Modular geometric forms provide aesthetic integrity in different spaces. Moreover, with project-based production, shape, color, and dimensions can be customized; thus a design language suitable for your brand/institution/space identity can be achieved.
Share a project photo and square footage details and we will quickly guide you to the right form, combination, and coverage.
FAQs and Contact
We have compiled the most frequently asked questions about geometric acoustic fabric panels. If you have a specific question for your project, please fill out the form.
Can geometric acoustic panels be customized?
Yes. Custom production is available in terms of shape, color, and dimensions for each project.
Can more than one panel type be used together?
Absolutely. You can create creative compositions by combining different geometric shapes.
Does it damage the surface?
No. When the correct installation method is used, it does not damage wall and ceiling surfaces.
